PET Solar Reflective Film/ Aluminized film /mirror reflective film
Product Description
Features:
a) Raw material: polyester film, metallized with aluminum
b) Maximum width: 2450mm
c) Thickness: usually is 12um,16um .17um,18um.Of course,it is adjustable to customer's requirements
d) Uses: packaging, printing, laminating, and decorating
Characters:
Low heat shrinkage, well tensile strength, aluminium coating is well-proportioned has very high luster degree, light reflectivity reach 98%.
Specification sheet
Film thickness | Thickness of Aluminum layer | width | Length or roll | Paper core |
8-150micron | 300-1000A | ≤2350mm | 500-36000m | 76mm(3″),152mm(6″) |
Most common specifications are 12μm,others can be made according to customers'requirement | ||||
OD: 1.8-3.0
Production Capacity:500tons per month above
quantity :20FCL :12-16tons 40FCL:22-24tons
Core diameter:3"(76mm) and 6"(152mm)
Packaging: Wooden pallet.
TDS:
Metallized PET film | ||||
Properties | Units | Typical Values | Test Methods | |
Thickness | μm | 12 | DIN53370 | |
Tensile Strength | MD | MPa | 218 | DIN53455-6-5 |
TD | 231 | |||
Elongation at Break | MD | % | 111 | DIN53455-6-5 |
TD | 114 | |||
Coefficient of Friction | F/F-μs | - | 0.48 | DIN53375 |
F/F-μk | 0.48 | |||
Heat Shrinkage | MD | % | 2.0 | BMSTT11 |
TD | 0.8 | |||
Thickness of Aluminum Layer | Ω/ | 2.0 | Resistance Tester | |
Optical Density | OD | 2.0 | MACBETH TD904 | |
Adhesion of Aluminum Layer | % | 100 | 3M Gummed Tape | |
Tolerace of Aluminum Layer | % | 6 | Resistance Tester | |
Gloss | % | 132.6 | ASTM D2457 | |
Surface tension | Dyne/cm | 60 | ASTM D2578 | |

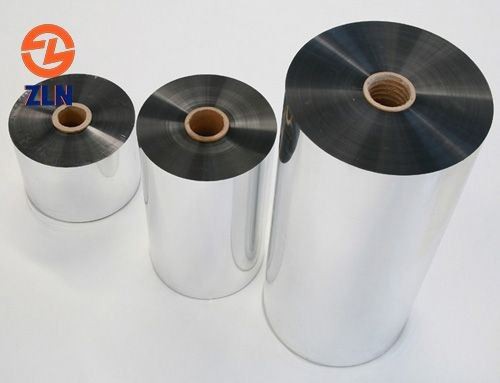

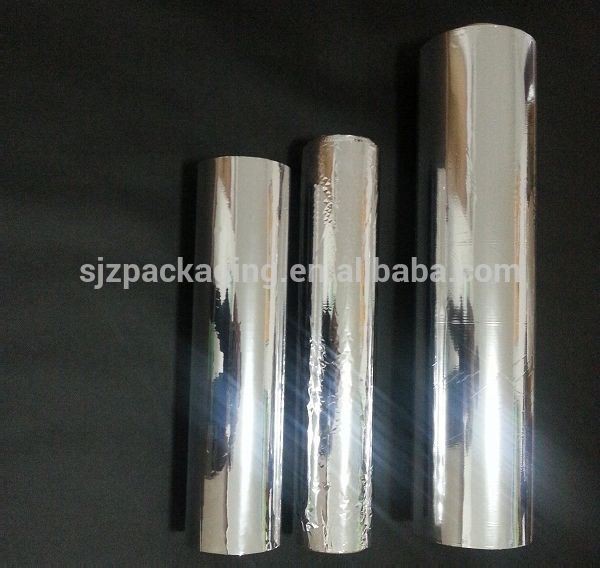

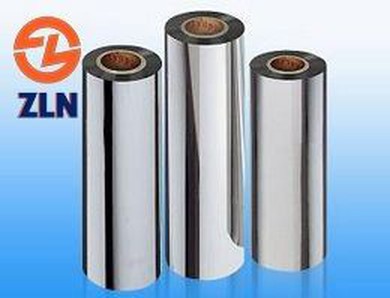

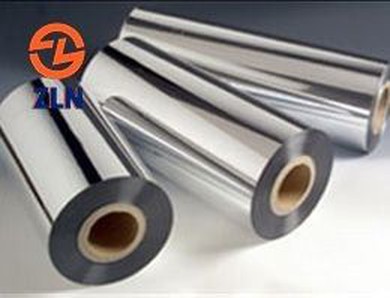

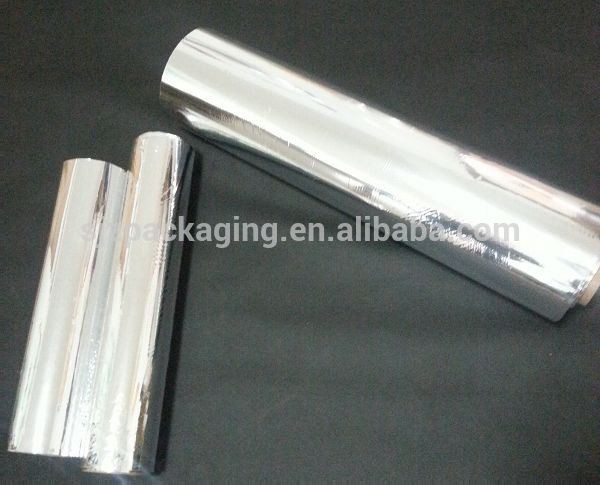

Product picturesProduct pictures
Product pictures

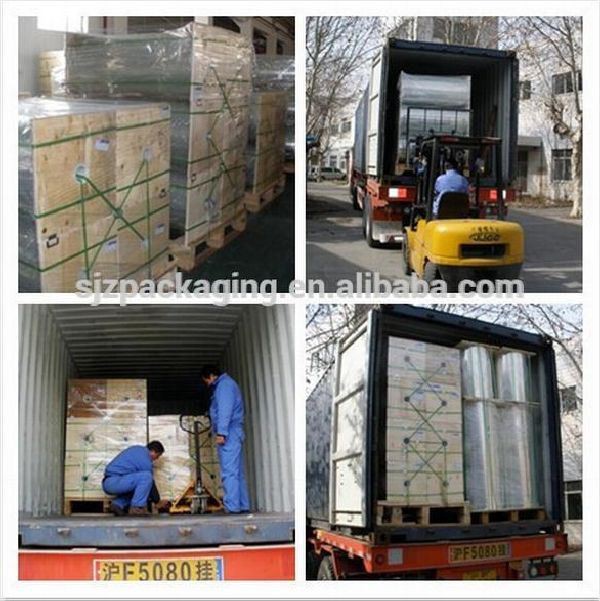

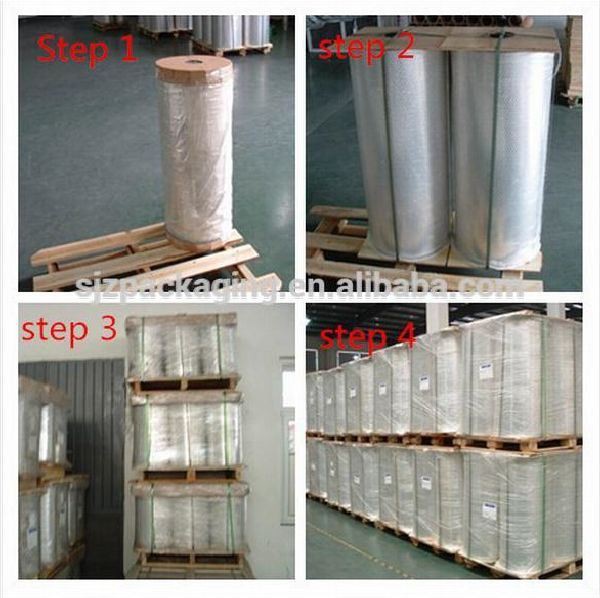

Packaging & Shipping
· 2-10 rolls (according different size ) in a wodden pallet.
· 1*20FCL: 10 pallets (About 12tons)
· 1*40FCL: 20 pallets (About 25tons)
· Loading port: Tianjin ,Shanghai, Qingdao ect.
Production Capacity
● 10 -15 days delivery of a 20 feet container
● 1000MTs (kilograms) per month
-
-
-
-
-
-
